Major Categories of KBA Spare Parts

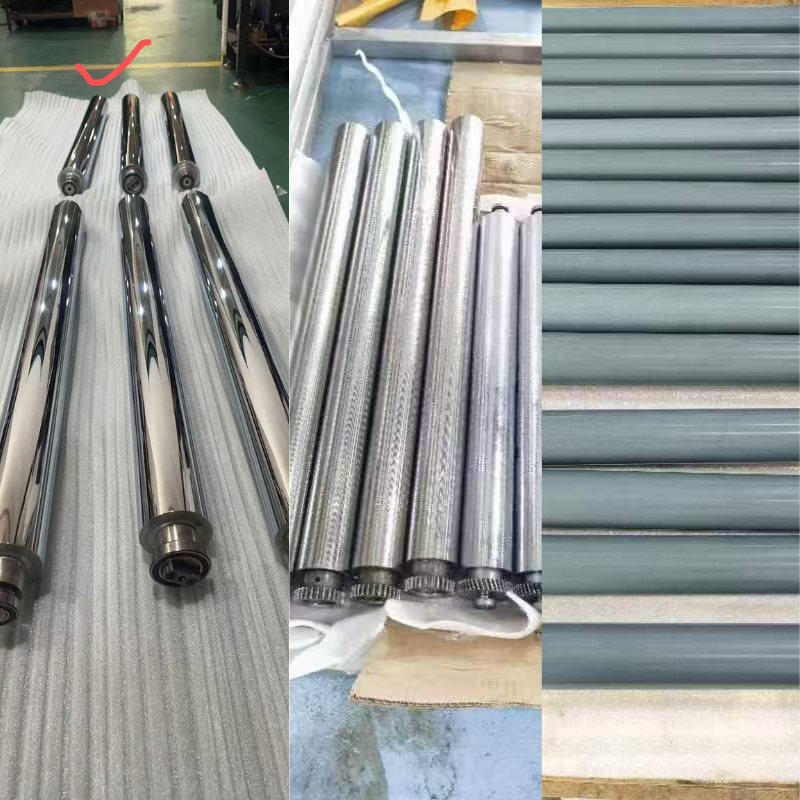

1. Rollers, Cylinders, and Blankets

  The printing unit forms the mechanical heart of any offset press, and its performance depends on a precisely calibrated system of rollers, cylinders, and blankets. KBA Rapida presses—including the widely deployed Rapida 105, 106, 142, and 162 models—rely on a sophisticated arrangement of inking and dampening rollers to transfer ink and fountain solution to the printing plate.

  Inking rollers in KBA presses are engineered to exacting tolerances for diameter, hardness, and surface texture. Different positions within the inking train require rollers with specific properties: form rollers that contact the plate must have a precise hardness to transfer ink without distortion, while distributor rollers that oscillate laterally require different surface characteristics to ensure even ink distribution across the roller train. KBA Rapida presses often feature continuous axial movement of ink rollers, a design that enhances ink uniformity and reduces ghosting artifacts in the final print.

  Impression cylinders, which press the substrate against the blanket during transfer, must maintain precise roundness and surface integrity. Over time, these cylinders may develop wear patterns, flat spots, or bearing degradation that compromise print consistency. Replacement impression cylinders and their associated bearings represent a significant category of long-term spare parts for high-volume pressrooms.

2. Inking and Dampening System Components

  Beyond the rollers themselves, the inking system comprises a diverse array of precision components that regulate ink flow and distribution. Ink fountain end plates, sealed by specialized components such as the KBA P1660290 sealing segment, contain the ink supply and prevent leakage during press operation. These sealing segments must maintain flexibility and chemical resistance to withstand continuous contact with printing inks, which may contain aggressive solvents and additives.

  The inking system also includes servo drives that control the rotational speed of individual rollers, enabling precise ink flow adjustment across the press width. KBA presses utilize servo drives for both inking and dampening motors, typically operating at 230V, and these drives represent high-value electronic spare parts that may require replacement during the press's service life. Ink fountain rollers, doctor blades, and wash-up blades complete the inking system, each subject to progressive wear and requiring periodic replacement.

  The dampening system includes its own dedicated components: water filters, air filters, and the various rubber suckers and anti-marking products that KBA presses employ in both the printing and delivery sections. These consumable items, while relatively inexpensive individually, collectively represent a significant portion of ongoing spare parts expenditure.

3. Pneumatic and Feeder Components

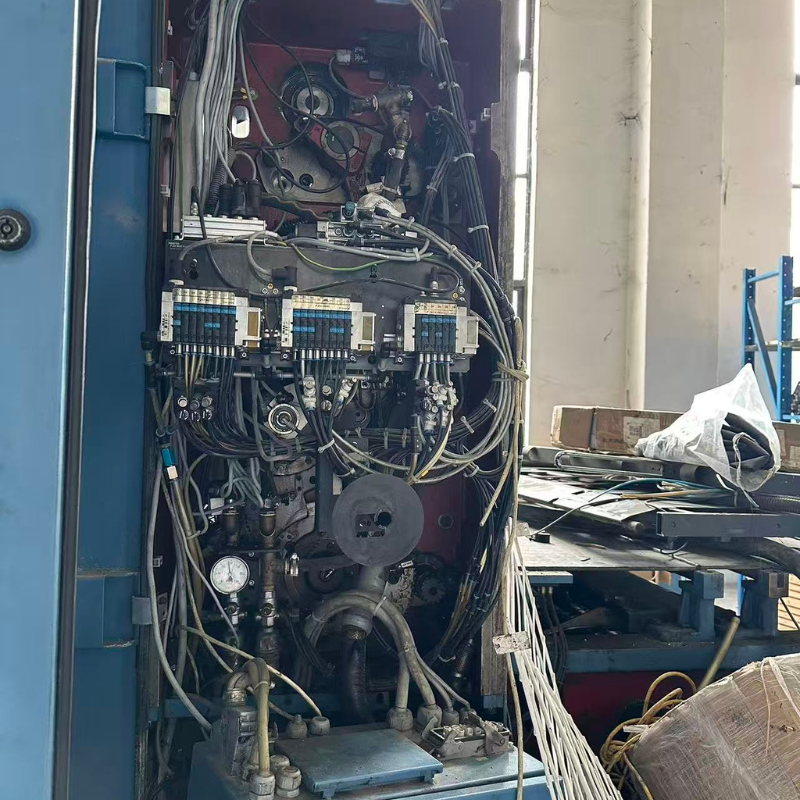

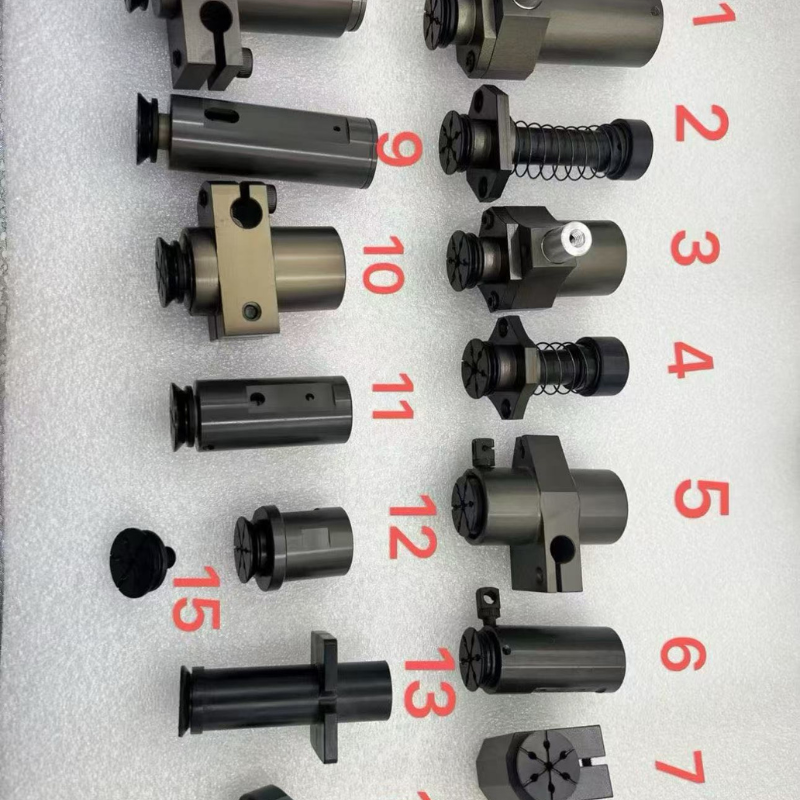

  Sheetfed offset presses are fundamentally pneumatic machines, relying on precisely controlled air pressure and vacuum to handle paper through every stage of the printing process. The feeder, which separates individual sheets from the paper stack, employs a sophisticated array of suction cups, rubber suckers, and pneumatic cylinders to initiate the paper's journey through the press.

  The vacuum pumps that generate the pressure differential for sheet handling are high-wear components that may eventually require rebuild or replacement. Their performance directly affects feeding reliability, and degraded vacuum pumps can lead to misfeeds, doubles, and paper jams that disrupt production.

4. Gripper and Sheet Transfer Components

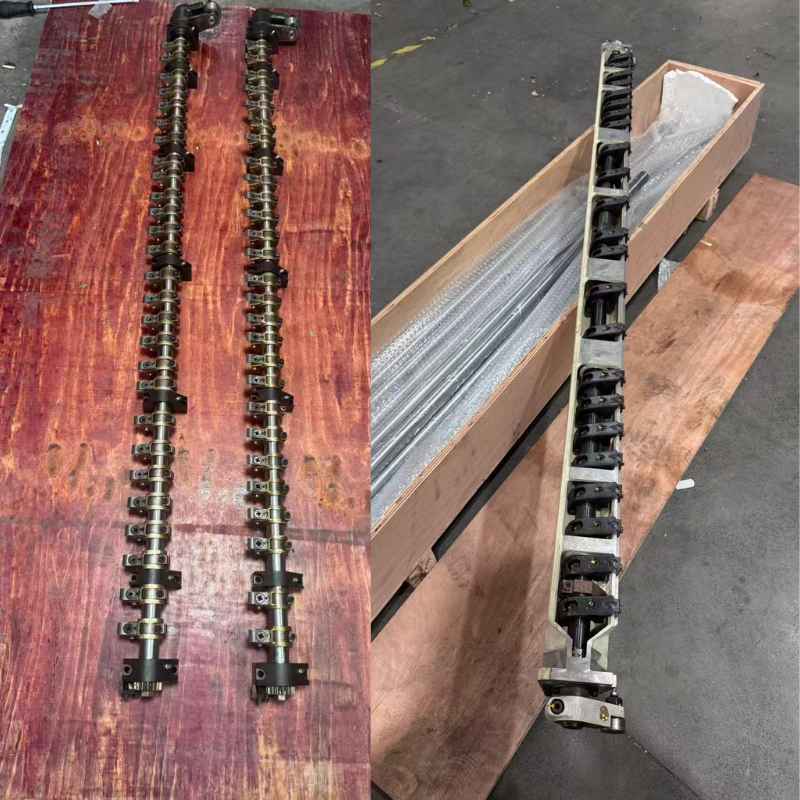

  Gripper systems are responsible for transferring sheets between printing units and through the delivery section, maintaining precise registration throughout the process. The gripper bars, which are manufactured with specific part numbers such as the KBA Rapida L7072380, represent precision mechanical assemblies that must maintain exact alignment and grip force to ensure consistent sheet handling.

  The sheet reversal gripper mechanisms used in perfecting presses are particularly complex, employing suction plates that temporarily hold the sheet before the gripper closes, enabling the sheet to be flipped for printing on the reverse side. The suction plate guiding apparatus, a specialized component in the reverse cylinder, must operate smoothly to prevent registration errors during the critical transfer process.

5. Control Systems and Electronics

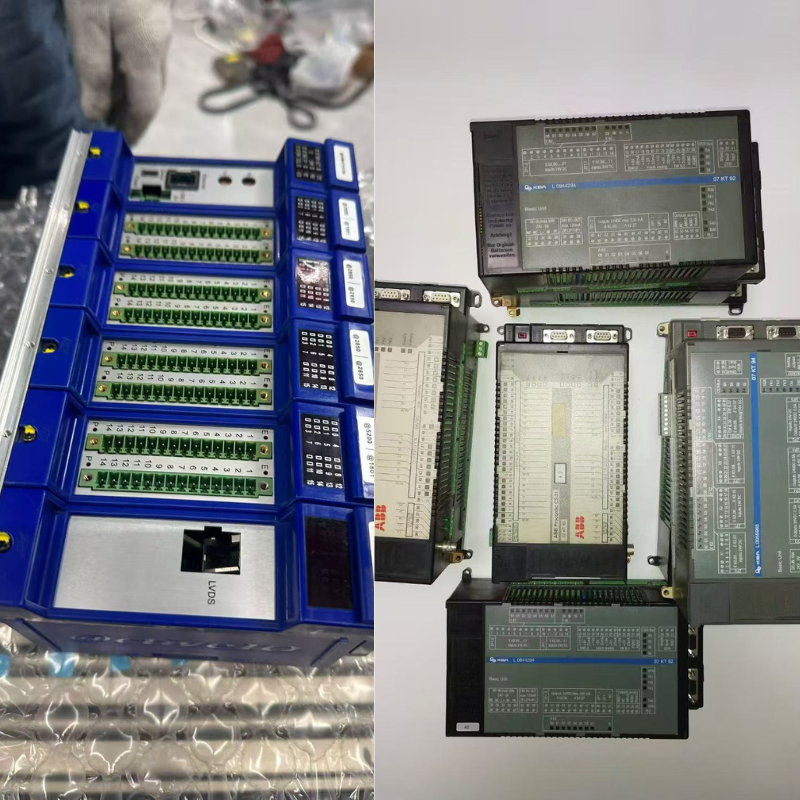

  Modern KBA presses are highly computerized machines, incorporating sophisticated control systems that manage everything from ink density to registration to overall press automation. The electronic components of these systems—control boards, PLCs, servo drives, potentiometers, and various sensors—represent some of the most expensive spare parts in the KBA ecosystem.

  An exemplary component is the potentiometer, model BI 7286R1K-3154A, which may be specified under OEM part number L0058657 and deployed in presses such as the KBA Comet. These small electronic devices control various parameters and must maintain precise electrical characteristics to ensure proper press operation. Similarly, servo drive units such as the KBA ECdrive D230B004 provide precise motor control for critical press functions, and their failure can halt production entirely.

  Colortronic and Ergotronic systems—KBA's proprietary control platforms for ink regulation, registration, and dampening control—rely on dedicated computer systems, including BDT-manufactured industrial PCs. When these control systems fail, replacement parts must be sourced from specialized suppliers who understand the unique architecture of KBA's automation platforms.
